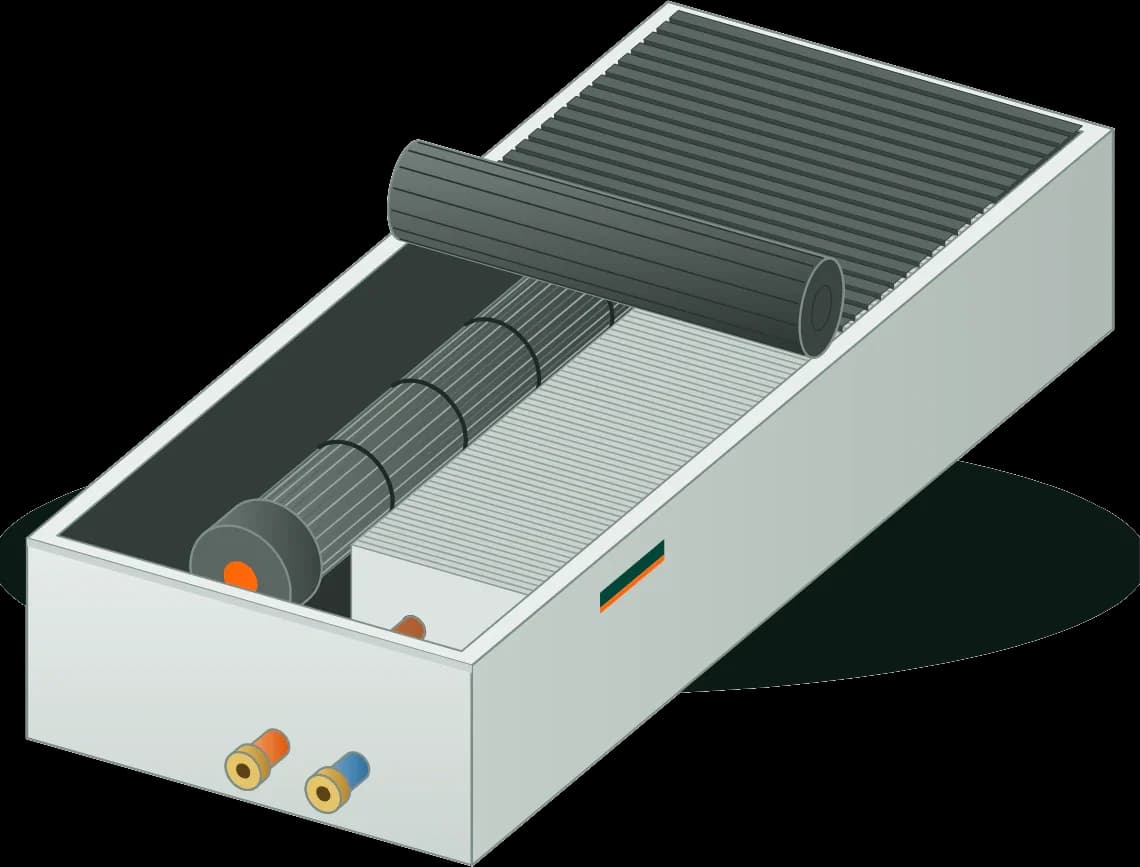

Fan-assisted trench convector
- 180–420 mm wide
- EC fan
Price on request
Made in Türkiye

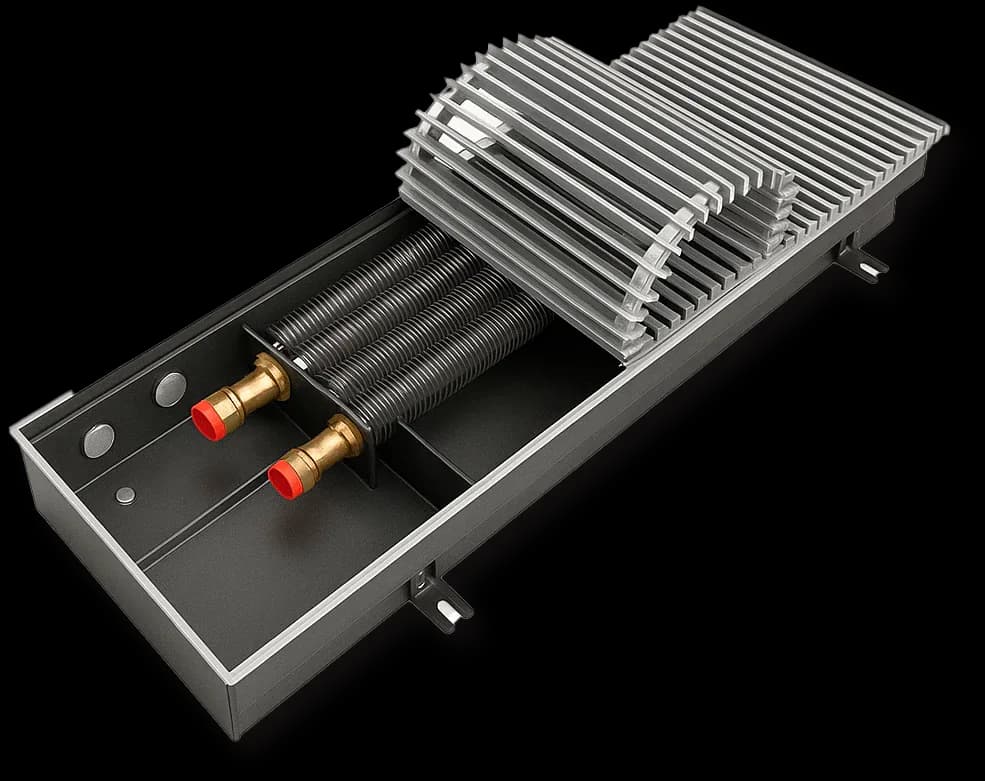

Trench convector
Installed flush with the floor: air is heated inside the housing and rises through a decorative grille.
- Flush with floor
- Decorative grille
Price on request
Specifications
- Series
- VNT-YKV
- Versions
- DG natural convection; FN with a tangential EC fan; IS heating and cooling (4-pipe); EL electric, 230 V
- Width
- 180–420 mm (IS: 260–420 mm)
- Length
- 800–3,000 mm
- Grille
- Roll-up or linear aluminum, or wood
- Size code
- VNT-YKV-FN-26-200 → 260 mm wide, 2,000 mm long
- Heating type
- Water / Electric
- Convection
- Natural or forced (fan-assisted)
- Power
- 300–4,000 W, depending on model and length
- Casing height
- 70–130 mm
- Heat exchanger material
- Copper-aluminum or steel
- Casing material
- Galvanized or stainless steel
- Control
- Manual or automatic
The exact model is selected for your airflow, pressure and installation conditions.
About the Product
Creates a warm air curtain in front of glazed walls, balcony doors and panoramic windows, prevents condensation and takes up no floor space.
Applications
- Villas, apartments and residences
- Office and business centers
- Shops and showrooms
- Hotels and restaurants
- Museums, galleries and exhibition spaces
Related items

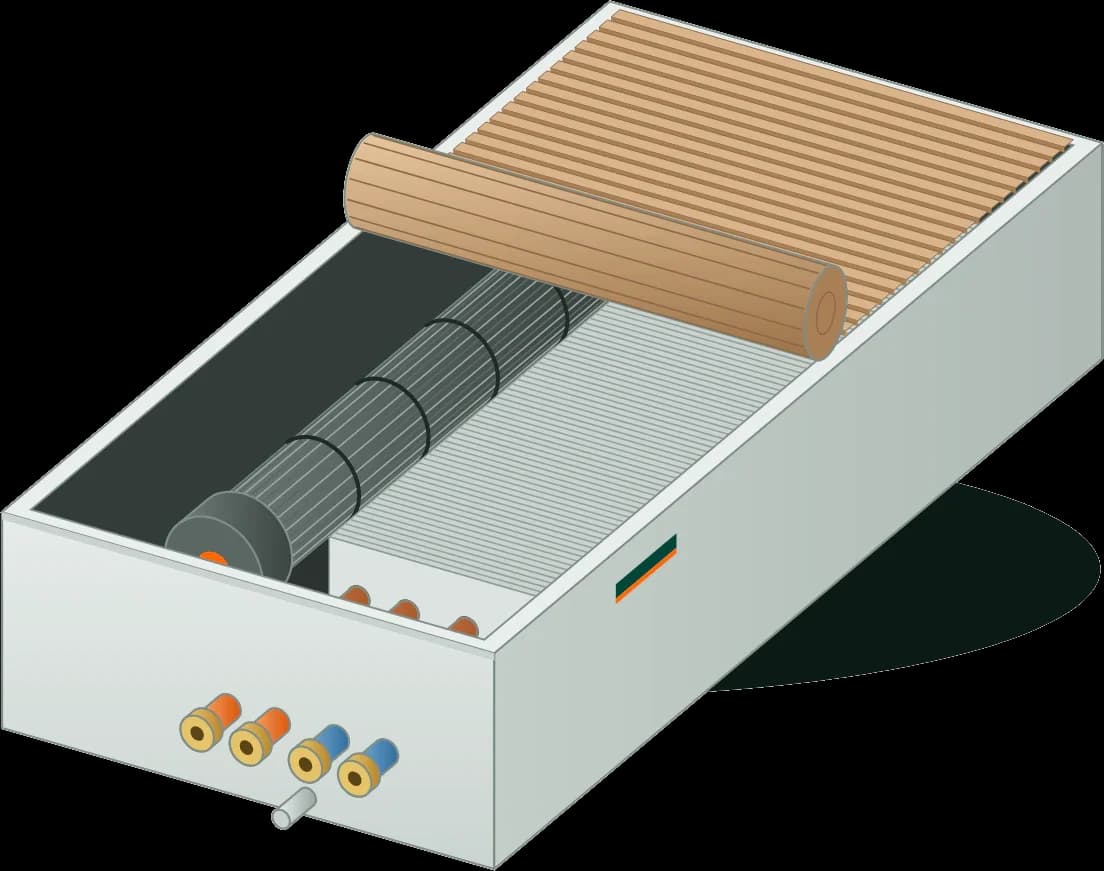

Heating and cooling trench convector
- 260–420 mm wide
- Heating and cooling
Price on request

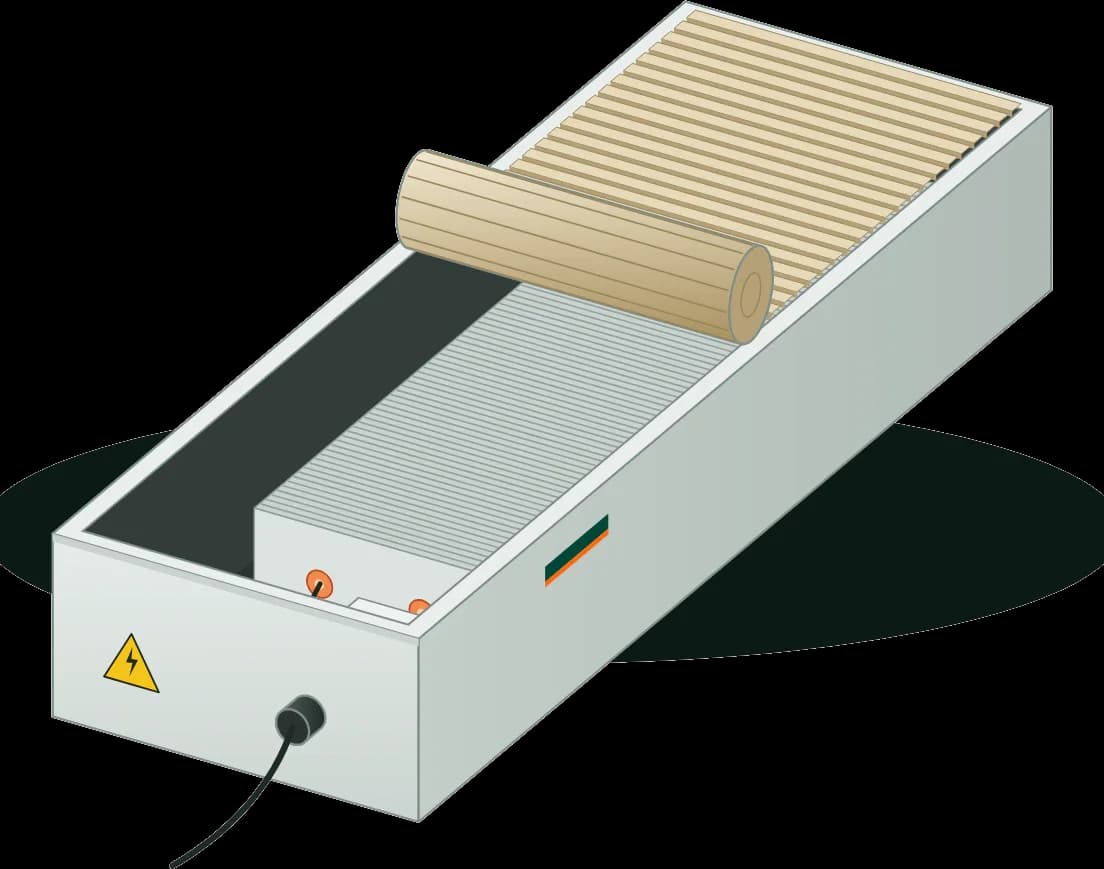

Electric trench convector
