Heat recovery unit
- Energy saving
- Heat exchanger
Price on request
Made in Türkiye
DX air handling unit
A direct-expansion unit that cools and ventilates small commercial buildings.
- Up to 100,000 m³/h
- No pump station
Price on request
Specifications
- Airflow
- 25,000–100,000 m³/h
- Cooling type
- Direct refrigerant expansion (R410A, R407C, R32, etc.)
- Refrigerant lines
- Suction and liquid lines to the outdoor unit
- Fan type
- EC plug fan / Centrifugal fan
- Heat exchanger
- Copper-aluminum DX coil
- Casing
- 50 mm thermally and acoustically insulated panels
- Casing material
- Galvanized / stainless steel, polymer coating
- Filtration
- G4 + F7, HEPA on request
- Noise level
- 48–65 dB(A), depending on configuration
- Automation
- Built-in controller / Modbus / BMS
- Leakage class
- L1 / F9 to EN 1886
The exact model is selected for your airflow, pressure and installation conditions.
About the Product
A direct-expansion unit that cools and ventilates small commercial buildings.
Air handling units for residential, public, healthcare and industrial buildings: comfort, mixing-box, heat pump packaged, compact, DX, plate and rotary heat recovery, glycol run-around, hygienic, pool and explosion-proof (ATEX) units, plus rooftop units, humidifiers and ceiling heat recovery units. We’ll size the unit to your airflow and project needs.
Applications
- Office buildings
- Shopping malls
- Commercial premises
- Supermarkets
- Technical areas with constant loads
Related items
Rotary heat recovery unit
- Up to 100,000 m³/h
- Sensible and latent heat
Price on request
Glycol run-around unit
- Up to 100,000 m³/h
- Separate air streams
Price on request

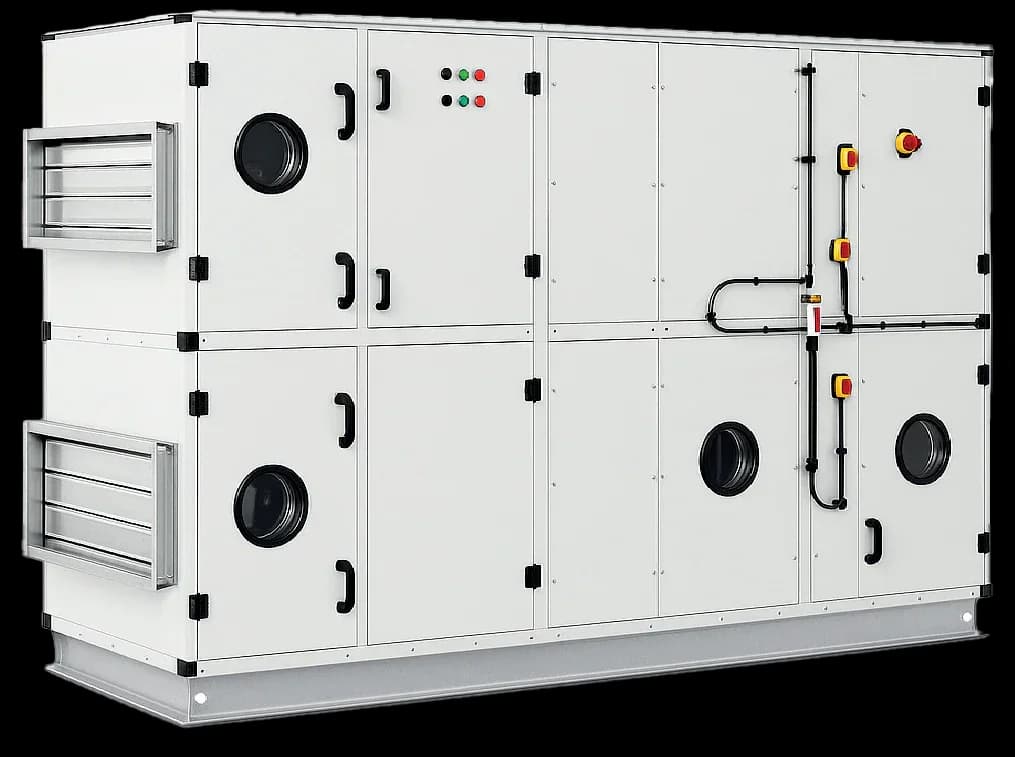

Hygienic air handling unit
